Multiple hot air circulation thermal bonding oven with low power consumtion

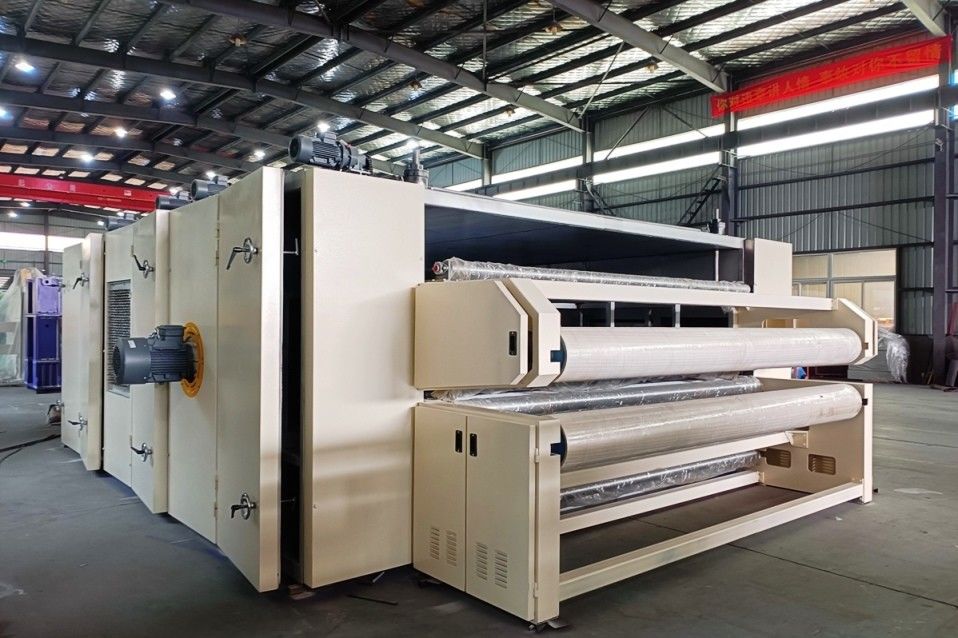

Thermo bonding Oven with Double Conveyor

Thermobonding oven with double layer conveyor utilizes the process of hot air penetration to heat fiber webs containing low-melting point fibers, achieving bonding and reinforcement for the web formation.

Working width: 2300mm～4000mm

Available products weight: 100～3000 GSM

Heating area: 6 – 10 meters (customization)



Thermobonding oven with double layer conveyor is used in nonwoven production lines and is particularly suitable for producing various high GSM and high-density products.

• Thermobonding oven comes with a single-layer structure with two separate upper and lower hot air channels.
• Circular airflow allows for efficient and uniform heating, resulting in excellent product quality.
• Functions include automatic and precise temperature control, independently adjustable air volume and heating power.
• Multiple insulation design helps in energy saving.
• Optional heating methods are burner, boiler, electric heating.
